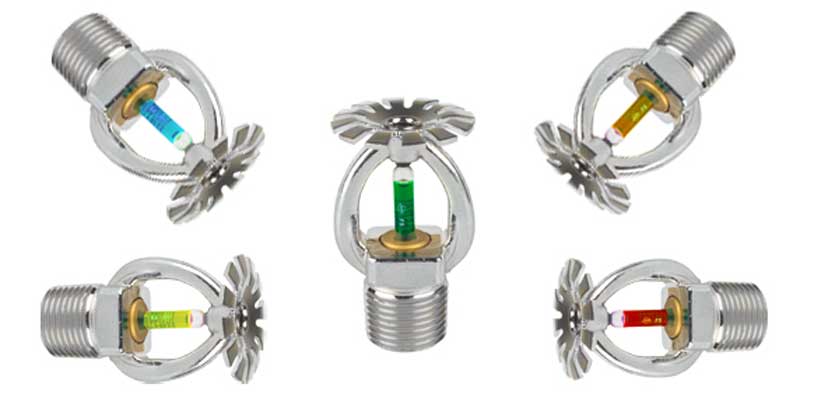

Bulb Sprinkler KEW 11

Bulb Sprinkler KEW 11

buln_sprinkler

Material of Construction

Valve Body High Tensile Brass Forging
Heat Sensitive Unit Quartzoid Bulb (Dia 8 mm)
Deflector Brass Sheet

Test Pressure

30 kgs/cm2

Working Pressure

12.4 kg/cm2 - max

Bulb Temp. Range & Colour

57 Degree C / 135 Degree F - Orange
buln_sprinkler
68 Degree C / 155 Degree F - Red
buln_sprinkler
79 Degree C / 175 Degree F - Yellow buln_sprinkler
93 Degree C / 200 Degree F - Green buln_sprinkler
141 Degree C / 266 Degree F - Blue buln_sprinkler

Inlet Threads

1/2 BSPT (1/2 NPT Optional)

Finish

Brass / Nickel & Chrome Plated

Net Weight

0.080 kgs

Safety Device

Specify finish & temp. rating while ordering
