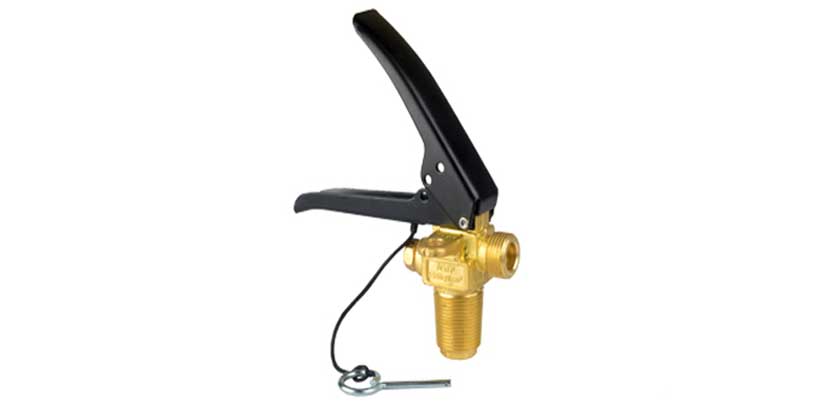

CO2 Squeeze Grip Valve
KEW 02
Material of Construction |
|
|---|---|
| Valve Body | High Tensile Brass Forging |
| Spindle | Brass IS : 319 |
| Hand Wheel | Steel to IS : 513 |
| Sealing Tip | Nitrile Rubber |
Test Pressure |
155 kg/cm2 |
Working Pressure |
105 kg/cm2 |
Outlet Threads |
21.8mm Dia x 1.814 P.(M) R .H. With Worth Profile Outlet No. - 7 To IS : 3224-2002 |
Net Weight |
0.575 kgs |
Safety Device |
Fitted with safety disc. With brust pressure 200-220 kg/cm2 |
