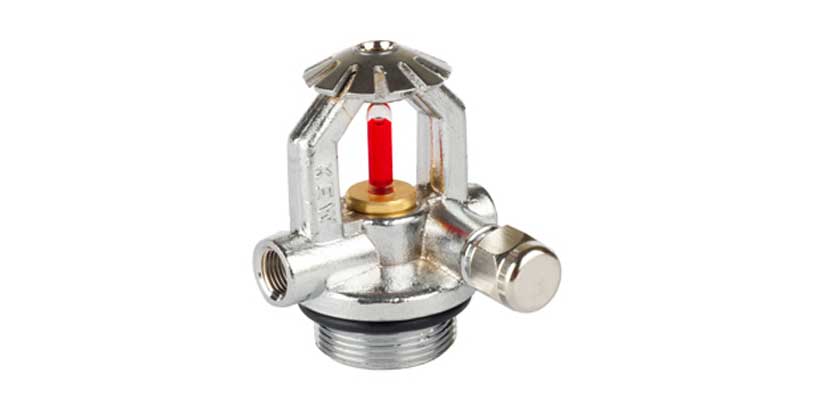

Modular Valve
KEW 10
Material of Construction |
|
|---|---|
| Valve Body | High Tensile Brass Forging |
| Heat Sensitive Unit | Quartzoid Bulb (Dia 8 mm) |
| Deflector | Brass Sheet |
Test Pressure |
30 kgs/cm2 |
Working Pressure |
15 kg/cm2 |
Bulb Temp. Range & Colour |
57 Degree C / 135 Degree F - Orange |
| 68 Degree C / 155 Degree F - Red | |
| 79 Degree C / 175 Degree F - Yellow | |
| 93 Degree C / 200 Degree F - Green | |
| 141 Degree C / 266 Degree F - Blue | |
Inlet Threads |
Dia M 30 X 1.5 P |
Net Weight |
0.215 kgs |
Note |
Deflectors can be supplied on customers requirement also. |
