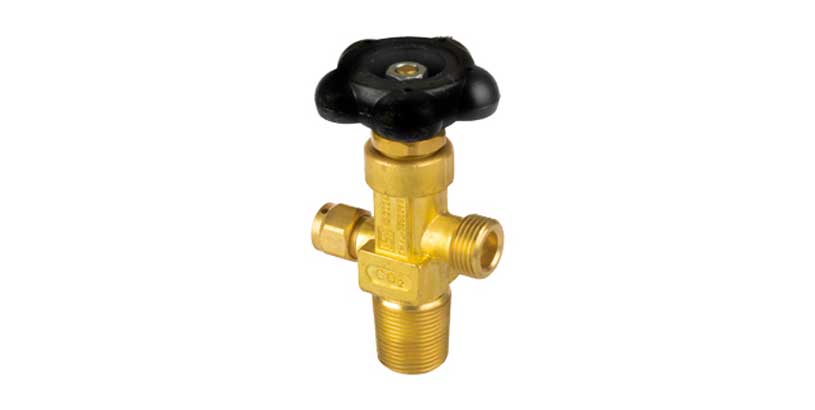

CO2 Wheel Type Valve KEW 01

CO2 Wheel Type Valve KEW 01


Material of Construction

Valve Body High Tensile Brass Forging
Spindle Brass IS : 319
Hand Wheel Cast Aluminium
Sealing Tip Nylon

Test Pressure

155 kg/cm2

Working Pressure

105 kg/cm2

Outlet Threads

21.8mm Dia x 1.814 P.(M)
R .H. With Worth Profile
Outlet No. - 7
To IS : 3224-2002

Net Weight

0.560 kgs

Safety Device

Fitted with safety disc.
With brust pressure 200-220 kg/cm2

Kuldeep Engineering Works

Please send us your enquiry or contact us for any of your query.
